Description

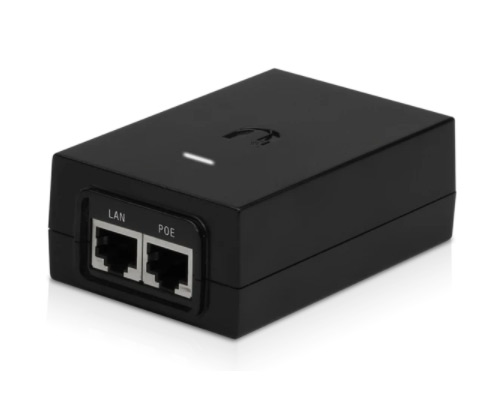

Ubiquiti PoE Adapter Compatibility with the airGateway
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber’s local network to the WISP network.
The airGateway is available in three models:
airGateway Standard model with an internal antenna
airGateway Pro Dual-Band Wi-Fi model with an internal antenna
airGateway-LR Long-range Wi-Fi model with an external antenna for extended range
Dimensions : 88 x 57 x 33 mm (3.47 x 2.24 x 1.30″)
Weight : 135.5 g (4.78 oz)
Output Voltage : 48VDC @ 0.5A
LAN Activity Indicator : No
Gigabit LAN Port : No
Remote Reset Capability : No
Reset Button : No
Rated Voltage : 100-240VAC @ 50/60Hz
Input Current : 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current : <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency : 0.8
Output Ripple : 1% Max.
Switching Frequency : 65 kHz
Line Regulation : ≤ 3%
Load Regulation : ≤ 5%
2-Pair Powering :Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature : 0 to 40° C (32 to 104° F)
Storage Temperature : -30 to 70°C (-22 to 158° F)
Operating Humidity : 35 to 95% Noncondensing
AC Connector : IEC-320 C6
Data IN / POE : RJ45 Shielded Socket
Surge Protection : Difference and Common Mode
Clamping Protection : 11V Data, 60V Power
Max. Surge Discharge : 1500A (8/20 μs) Power
Peak Pulse Current : 36A (10/1000 μs) Data
Shunt Capacitance : <5 pF data
Response Time : <1 ns
Certifications : CE, FCC, IC, UL
