Description
Full Adjustment Flexibility

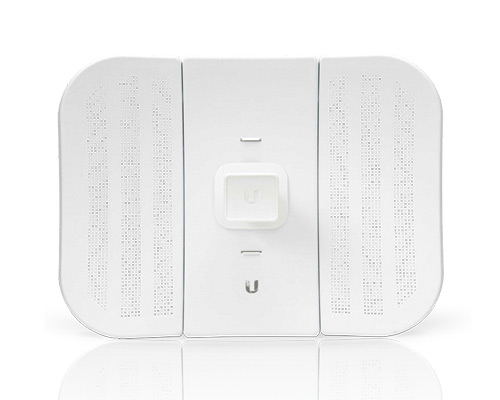

The LiteBeam features a unique ball joint mount that provides adjustment flexibility along three axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.
Quick, Snap-and-Lock Assembly
The all-new mechanical design makes assembling the LiteBeam – literally – a snap. No tools are required. Simply snap the feed, antenna panels, rear housing, and ball joint mount together for a secure, solid assembly.
Dimensions : 14.25 x 10.51 x 7.24″ | 362 x 267 x 184 mm(No Mount)
Weight: 24.11 oz | 750 g(No Mount)
Mounting Kit : Pole Mounting Kit (Included)
Networking Interface : (1) 10/100 Ethernet Port
Memory : 64 MB
Max. Power Consumption : 4W
Max. TX Power : 25 dBm
Antenna Gain : 23 dBi
Operating Frequency : Worldwide: 5150 – 5875 MHz | USA: 5150 – 5850 MHz
Power Supply : 24V, 0.2A PoE Adapter (Included)
Power Method : Passive PoE (Pairs 4, 5+; 7, 8 Return)
Processor Specs : Atheros MIPS 74Kc, 533 MHz
Operating Temperature : -40 to 70° C (-40 to 158° F)
Operating Humidity : 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4
ETSI Specification : EN 302 326 DN2
ESD/EMP Protection : ± 24 kV Contact / Air
Certifications : FCC, IC, CE
