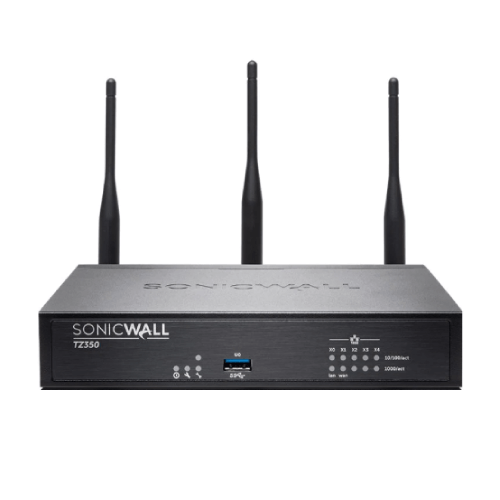

Get high-speed threat prevention in a flexible, integrated security solution with the SonicWall TZ series.

Designed for small networks and distributed enterprises with remote and branch locations, the TZ series offers different models that can be tuned to meet your specific needs.

Advanced networking and management features such as secure SD-WAN and zero-touch deployment make it easy to bring up sites as you need.

Technical Specifications:

• Networking

  • Type :Security appliance
  • Form Factor :External
  • Connectivity Technology :Wired, Wireless
  • Data Link Protocol :IEEE 802.11a, Ethernet, IEEE 802.11b, IEEE 802.11g, Fast Ethernet, IEEE 802.11ac, IEEE 802.11n, Gigabit Ethernet
  • Wireless Protocol :802.11a/b/g/n/ac
  • Routing Protocol :Static IP routing, RIP-2, OSPF, RIP-1, Policy-based routing (PBR), BGP
  • Network / Transport Protocol :UDP/IP, PPPoE, TCP/IP, DHCP, PPTP, IPSec, ICMP/IP, L2TP
  • Remote Management Protocol :HTTPS, SNMP 2, HTTP, SNMP 3, CLI
  • Wi-Fi Bands :2.4 GHz, 5 GHz
  • Status Indicators :Port transmission speed, Link/activity, Test mode, Power
  • Compliant Standards :IEEE 802.11g, IEEE 802.11b, IEEE 802.11n, IEEE 802.11i, IEEE 802.11ac, IEEE 802.11a

• IP Telephony

  • VoIP :Yes
  • VoIP Protocols :H.323 v2, H.323 v4, H.323 v1, H.323 v3, H.323 v5, SIP

• Interface Provided

  • Interfaces :1 x USB 3.0 – Type A, 4 x 1000Base-T – RJ-45, 1 x 1000Base-T – RJ-45 (WAN), 1 x console – RJ-45

• OS Provided

  • Type :SonicOS

• Power Device

  • Type :External power adapter
  • Power Provided :24 watt
  • Nominal Voltage :AC 120/230 V
  • Frequency Required :50/60 hertz
  • Power Consumption Operational :12 watt
