Description

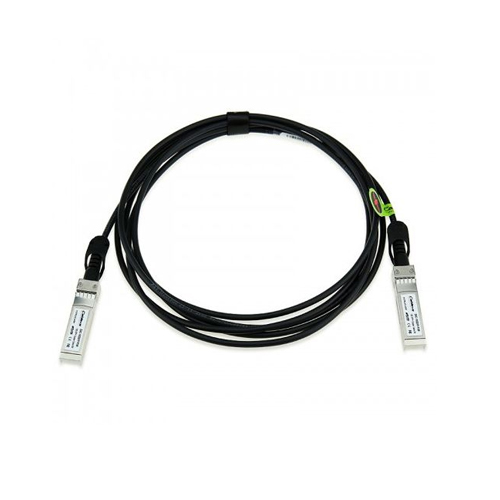

SFP-10G-CU3M Overview

The SFP+ DAC copper cable is programmed to be compatible with a wide range of HW network equipment for in-rack connections such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Network Storage Systems. It’s proven to be a cost-effective alternative to high-cost HW SFP-10G-CU3M 10G SFP+ 3m direct attach the copper cable.

Part Number : 02310MUP
Model : SFP-10G-CU3M
Description : SFP+,10G,High Speed Direct-attach Cables,3m,SFP+20M,CC2P0.254B(S),SFP+20M,Used indoor
Connector X1 : SFP+
Connector X2 : SFP+
Cable length [m (ft.)] : 3 m (9.84 ft.)
Electrical attribute : Passive
Bend radius [mm (in.)] : 25 mm (0.98 in.)
Minimum Clearance for Cable Routing [mm (in.)] : 60 mm (2.36 in.)

Product Details

Huawei SFP-10G-CU3M provides these features:

• lower cost than SFP+ optical transceiver and active optical cable (AOC)
• Support for multi-gigabit data rates up to 10.5Gbps
• Support for 1x, 2x, 4x and 8x Fibre Channel data rates
• Hot-pluggable SFP 20PIN footprint
• I/O Connector designed for high-speed differential signal applications
• Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
• Single 3.3V power supply
• Compatible to SFP+ MSA
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free
