Description

Input overvoltage protection

In this protection state, the power module is turned off and stops supplying power. When the system recovers from input overvoltage, the power module can automatically start supplying power again.

Output overvoltage protection

If output overvoltage is caused by the power module itself, the power module stops supplying power. When the system recovers from output overvoltage, the power module cannot automatically start supplying power again

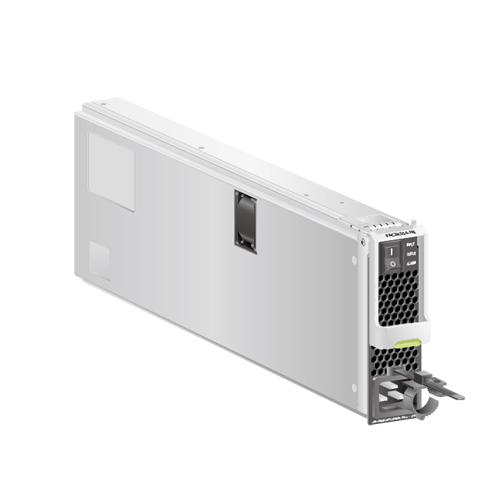

Technical Specifications

Dimensions without packaging (H x W x D) [mm(in.)] : 130 mm x 41 mm x 417.4 mm (5.1 in. x 1.6 in. x 16.4 in.)
Weight without packaging [kg(lb)] : < 3 kg
Number of inputs : 1
Rated input voltage [V] : 220 V AC/110 V AC; 50/60 Hz, 240 V DC

Input voltage range [V]

90 V AC to 290 V AC; 47 Hz to 63 Hz
190 V DC to 290 V DC
The maximum current of the power cable used by the 3000 W AC power module is 16 A. When the 220 V input is used, the minimum voltage cannot be lower than 200 V. When the 110 V input is used, the minimum voltage cannot be lower than 100 V.

Maximum input current [A] : AC input: 16 A, High-voltage DC input: 14 A

Rated output voltage [V] : 53.5 V DC
Rated output current [A] : 56.1 A (220 V AC input or 240 V DC)/28.1 A (110 V AC Input)
Rated output power [W] : 3000 W (220 V AC input or 240 V DC)/1500 W (110 V AC input)
Power dissipation Mode : Heat dissipation with fan
Hot swapping : Supported
