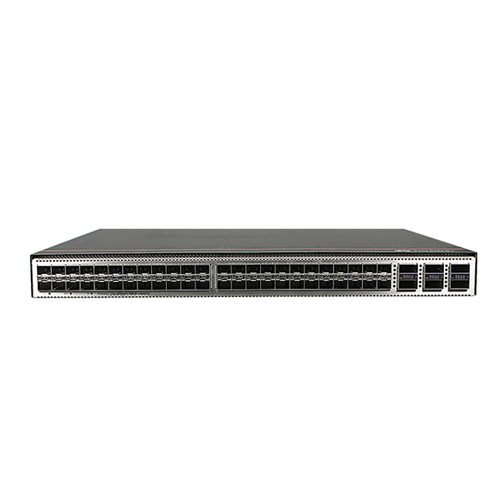

Description

Technical Specifications

Dimensions with packaging (H x W x D) [mm (in.)] : 175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)] : Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Weight without packaging (base configuration) [kg (lb)]: 5.7 kg (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] : 7.8 kg (17.2 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging (base configuration) [kg (lb)] : 8.95 kg
Weight with packaging (full configuration) [kg (lb)] : 11.05kg
Installation Type : Cabinet Installation
CPU : 4-core, 1.4GHZ
Memory : DRAM: 4 GB
NOR Flash : 64 MB
NAND Flash : 4 GB
USB : Supported
Power supply mode : AC,DC,HVDC
Console port : RJ45

Downlink Service interface

48*25GE SFP28 (Note: 1. 25GE ports can be configured to work at 10 Gbit/s or 1 Gbit/s. Every four downlink 25GE ports form a group, and can be configured to work at 10 Gbit/s or 1 Gbit/s through the command; 2. 10GE LRM/80KM linear optical modules are not supported; 3. 1 m 25GE copper cables and 1 m/3 m/5 m 10GE copper cables are supported, and auto-negotiation of copper cables is not supported; 4. 25GE copper cables can only be used on stack ports and M-LAG peer-link ports.)

Uplink Service interface

6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.)

Service port supporting the stack function : 25GE optical ports, and 100GE optical ports
RTC : Supported

Typical power consumption [W]

261 W (100% throughput, short-distance optical modules on all ports, dual power modules) 226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)

Typical heat dissipation [BTU/hour]
771 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
891 BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules)

Static power consumption [W] : 167 W
Static heat dissipation [BTU/hour] : 570 BTU/hour
Maximum power consumption [W] : 384 W
Maximum heat dissipation : 1310 BTU/hour
Number of power modules : 2
Redundant power supply : 1+1 backup

Rated input voltage [V]

Rated AC input voltage range: 100 V AC to 240 V AC; 50/60 Hz
Rated –48 V DC input voltage range: –48 V DC to –60 V DC
Rated input voltage range for 600 W AC & 240 V DC: 240 V DC
Rated input voltage range for 1200 W HVDC: 240 V DC to 380 V DC
