The DeviceNet Master Module allows a control system CPU to send and receive data over a DeviceNet network.  It can act as master for up to 63 slaves on the DeviceNet network.

It can also be configured to simultaneously function as a slave to another master on the bus.

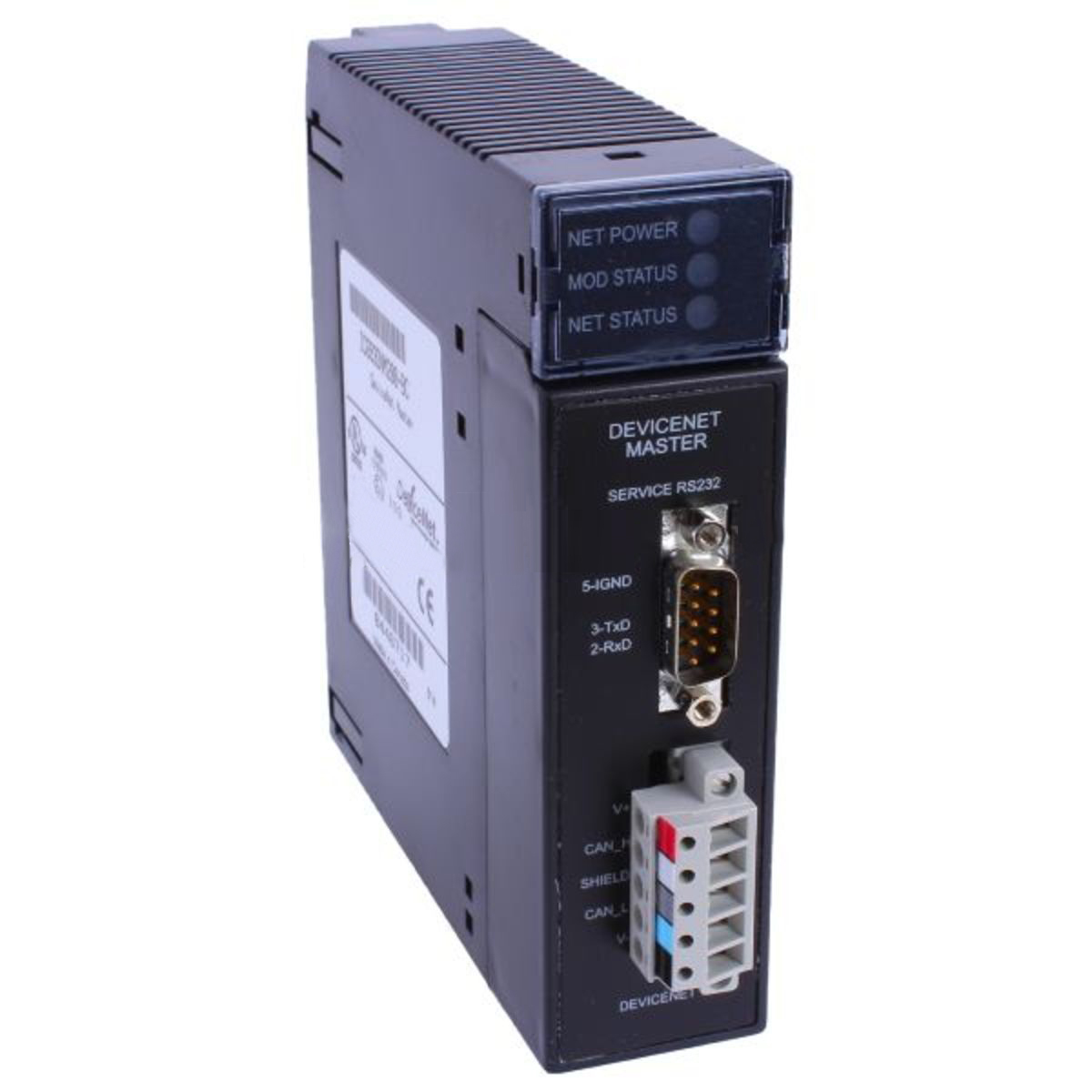

The IC693DNM200 module is a GE Fanuc device net master module of the 90-30 series. It has a rated voltage of 12-24VDC positive logic with an ON-state voltage drop of 0.3 V DC. The ON and OFF response times are 0.5ms maximum.

Furthermore, the master module comes with 32 output points organized in groups of four with each group having 8 points.

It has an inrush current of 5.4 Amps for 10ms and an output current is 0.5 Amps per point with a 4Amps current per group and 3 Amps maximum per group common pin.

It exchanges I/O messages and custom explicit messages with up to 63 other devices on the network. On Device Net networks that include a higher-level host computer, this module’s built-in server function can be used for both automatic data transfer and custom explicit messaging with the master.

Technical Specifications:

Catalog Numbers	IC693DNM200, IC694DNM200
Description	Master Module for DeviceNet networks
Mounting Location Series 90-30	Series 90-30 main rack: Any slot except slots 0 and 1.
PACSystems RX3i	RX3i main rack: Any slot except slot 0.
	DeviceNet Master  modules cannot be installed in remote or  expansion  racks.
Environment	Storage temperature: -40°C to 85°C Operating temperature:   0°C  to 60°C
Backplane Current Consumption	450mA at 5VDC (typical)
Data rates	Supports all standard DeviceNet data rates (125K, 250K, and 500K Baud)
