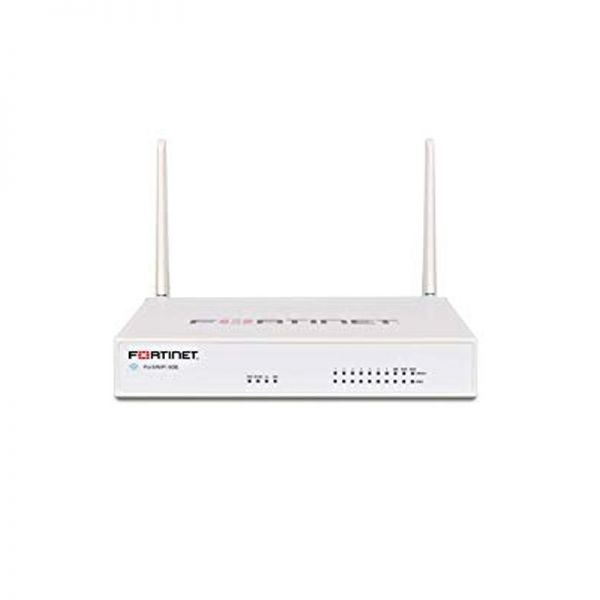

FortiWiFi-60E – FWF-60E-BDL – Hardware plus 1 Year 8×5 FortiCare and FortiGuard Unified (UTM) Protection

System Performance — Enterprise Traffic Mix

IPS Throughput 2 400 Mbps
NGFW Throughput 2, 4 250 Mbps
Threat Protection Throughput 2, 5 200 Mbps

System Performance

Firewall Throughput (1518 / 512 / 64 byte UDP packets) 3 / 3 / 3 Gbps
Firewall Latency (64 byte UDP packets) 3 μs
Firewall Throughput (Packets Per Second) 4.5 Mpps
Concurrent Sessions (TCP) 1.3 Million
New Sessions/Second (TCP) 30 000
Firewall Policies 5000
IPsec VPN Throughput (512 byte) 1 2 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 500
SSL-VPN Throughput 150 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg. HTTPS) 135 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 135
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 75 000
Application Control Throughput (HTTP 64K) 650 Mbps
CAPWAP Throughput (HTTP 64K) 890 Mbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 16
Maximum Number of FortiAPs (Total / Tunnel Mode) 30 / 10
Maximum Number of FortiTokens 500
High Availability Configurations Active-Active, Active-Passive, Clustering
