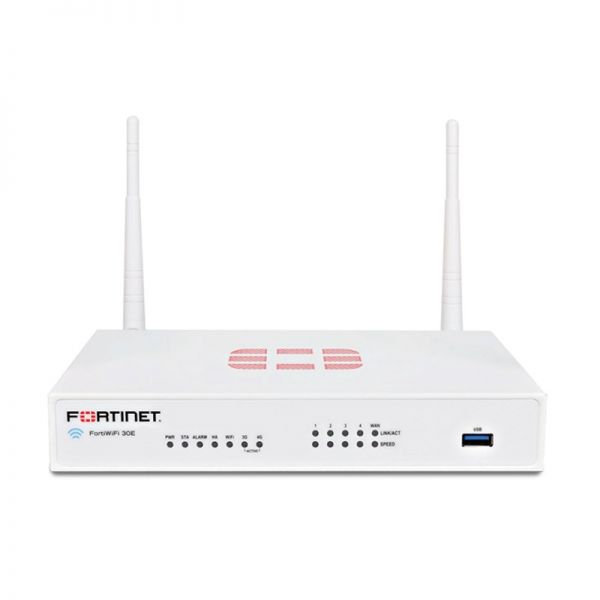

The FortiWiFi 30E series provides an application-centric, scalable and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industryleading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s SecurityDriven Networking approach provides tight integration of the network to the new generation of security.

System Performance — Enterprise Traffic Mix

IPS Throughput 2 300 Mbps
NGFW Throughput 2, 4 200 Mbps
Threat Protection Throughput 2, 5 150 Mbps
System Performance
Firewall Throughput 950 Mbps
Firewall Latency (64 byte UDP packets) 130 μs
Firewall Throughput (Packets Per Second) 180 Kpps
Concurrent Sessions (TCP) 900,000
New Sessions/Second (TCP) 15,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte) 1 75 Mbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 250
SSL-VPN Throughput 35 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)100
SSL Inspection Throughput (IPS, avg. HTTPS) 3 125 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 120
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 45,000
Application Control Throughput (HTTP 64K) 2 400 Mbps
CAPWAP Throughput (HTTP 64K) 850 Mbps
Virtual Domains (Default / Maximum) 5 / 5
Maximum Number of FortiSwitches Supported 8
Maximum Number of FortiAPs (Total / Tunnel Mode) 2 / 2
Maximum Number of FortiTokens 500
High Availability Configurations Active/Active, Active/Passive, Clustering
