FG-80E-BDL Specification

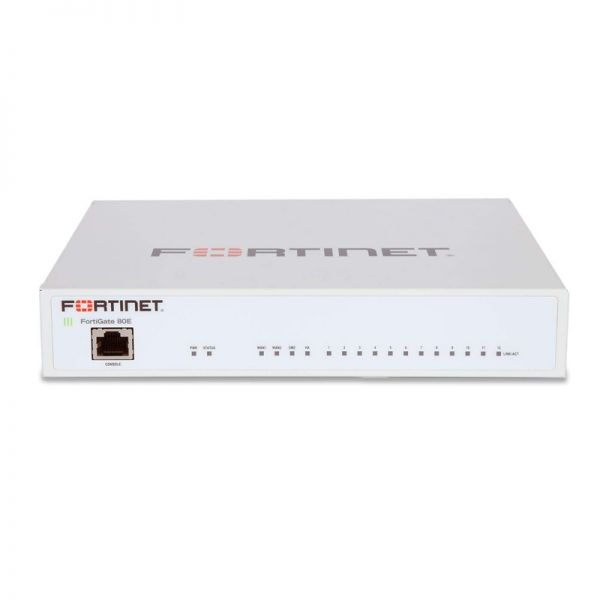

Fortinet FG-80E Hardware plus 1 Year 8×5 FortiCare and FortiGuard UTM Bundle

Hardware Specifications
GE RJ45/SFP Shared Media Pairs: 2
GE RJ45 Ports: 12
GE RJ45 DMZ/HA Ports: 2
USB Ports: 1
Console (RJ45): 1

System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 4 / 4 / 4 Gbps
Firewall Latency (64 byte UDP Packets) : 3 μs
Firewall Throughput (Packet per Second) : 6 Mpps
Concurrent Sessions (TCP) : 1.3 Million
New Sessions/Second (TCP) : 30,000
Firewall Policies : 5,000
IPsec VPN Throughput (512 byte) : 2.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 200
Client-to-Gateway IPsec VPN Tunnels : 2,500
SSL-VPN Throughput : 200 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
SSL Inspection Throughput (IPS, avg. HTTPS) : 135 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) : 135
SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 95,000
Application Control Throughput (HTTP 64K) : 900 Mbps
CAPWAP Throughput (HTTP 64K) : 920 Mbps
Virtual Domains (Default / Maximum) : 10-Oct
Maximum Number of Switches Supported : 8
Maximum Number of FortiAPs (Total / Tunnel Mode) : 32 / 16
Maximum Number of FortiTokens : 500
Maximum Number of Registered FortiClients : 200
High Availability Configurations : Active / Active, Active / Passive, Clustering

System Performance
IPS Throughput: 450 Mbps
NGFW Throughput: 360 Mbps
Threat Protection Throughput: 250 Mbps

Dimensions and Power
Height x Width x Length: 1.65 x 8.5 x 7 inches, 42 x 216 x 178 mm
Form Factor: Desktop
Power Required: 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum): 18 W / 25 W
Current (Maximum): 100V AC / 0.25A, 240V AC / 0.11A
Heat Dissipation: 85.30 BTU/h

Operating Environment and Certifications
Operating Temperature: 32–104°F (0–40°C)
Storage Temperature: -31–158°F (-35–70°C)
Humidity: 10–90% non-condensing
Noise Level: Fanless 0 dBA
Operating Altitude: Up to 16,404 ft (5,000 m)
Compliance: FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications: ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
