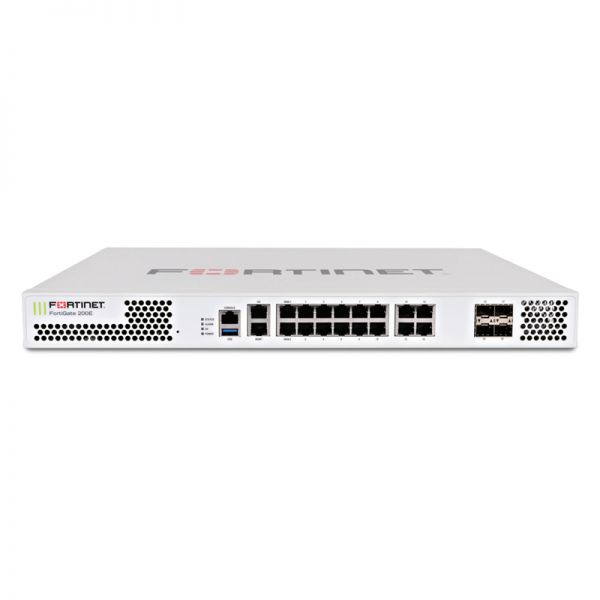

FG-200E-BDL Specification

Fortinet FG-200E Hardware plus 1 Year 8×5 FortiCare and FortiGuard UTM Bundle

Interfaces and Modules
GE SFP Slots: 4
GE RJ45 Interfaces: 14
GE RJ45 WAN Interfaces: 2
GE RJ45 Management/HA Ports: 2
USB Ports: 2
RJ45 Console Port: 1
Included Transceivers: 0

System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP) : 20 / 20 / 9 Gbps
Firewall Latency (64 byte, UDP) : 3 μs
Firewall Throughput (Packet per Second) : 13.5 Mpps
Concurrent Sessions (TCP) : 2 Million
New Sessions/Second (TCP) : 135,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 7.2 Gbps
Client-to-Gateway IPsec VPN Tunnels : 10,000
SSL-VPN Throughput : 900 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 5,00
SSL Inspection Throughput (IPS, avg. HTTPS)  : 820 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) : 1000
Application Control Throughput (HTTP 64K) : 3.5 Gbps
CAPWAP Throughput (1444 byte, UDP) : 1.5 Gbps
Virtual Domains (Default / Maximum) : 10-Oct
Maximum Number of FortiSwitches Supported : 24
Maximum Number of FortiAPs (Total / Tunnel) : 128 / 64
Maximum Number of FortiTokens : 5,000
Maximum Number of Registered FortiClients : 600
High Availability Configurations : Active-Active, Active-Passive, Clustering

System Performance — Enterprise Traffic Mix
IPS Throughput: 2.2 Gbps
NGFW Throughput: 1.8 Gbps
Threat Protection Throughput: 1.2 Gbps

Dimensions and Power
Height x Width x Length: 1.75 x 17.0 x 11.9 inches, 44.45 x 432 x 301 mm
Form Factor: 1 RU
AC Power Supply: 100–240V AC, 60–50 Hz
Power Consumption (Average / Maximum): 70.98 / 109.9 W
Heat Dissipation: 374.9 BTU/h

Operating Environment and Certifications
Operating Temperature: 32–104°F (0–40°C)
Storage Temperature: -31–158°F (-35–70°C)
Humidity: 10–90% non-condensing
Noise Level: 31.1 dBA
Operating Altitude: Up to 7,400 ft (2,250 m)
Compliance: FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications: ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
