Description
Key Features
- System Type: Biometrics System
- Segment: Home, Office
- Transactions: 200000
- Display Size: 3 Inch
- Memory: 256 MB Flash Memory and 32MB SD RAM
- Identification Speed: 1 sec
SPECIFICATIONS |
|

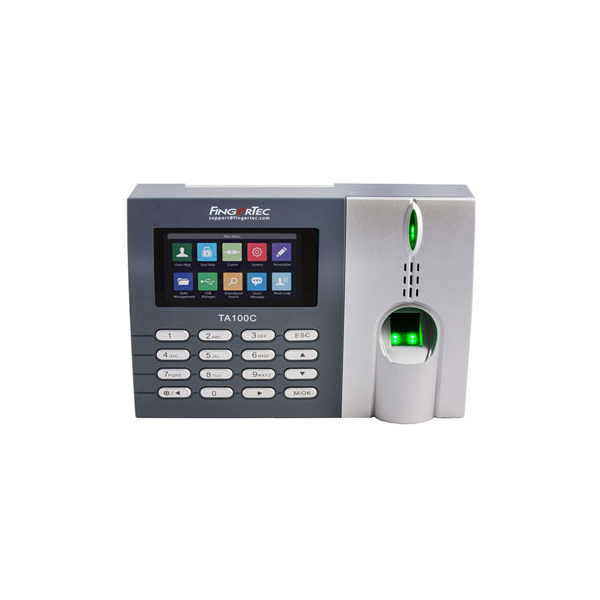

| MODEL | TA100C-R |
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) |
| TYPE OF SCANNER | Non coated optical scanner |
| MICROPROCESSOR | 800 MHz |
| MEMORY | 256MB flash memory & 128MB SDRAM |
| ALGORITHM | BioBridge VX 9.0 / BioBridge VX 10.0 |
| PUSH TECHNOLOGY | Yes |
| DIMENSION (L X W X H), mm | 190 x 52 x 140 |
| STORAGE | |
| Fingerprint templates | 8000 |
| Cards | N/A |
| Transactions | 200000 |
| ENROLLMENT & VERIFICATION | |
| Methods | Fingerprint (1:1, 1:N) & password |
| Recommended Fingerprint per user ID | 2 |
| Fingerprint placement | Any angle |
| Verification time (sec) | < 1 |
| FAR (%) | < 0.0001 |
| FRR (%) | < 1 |
| CARD TECHNOLOGY | |
| RFID: 64-bit, 125kHz, RF output power (EN300-330) | N/A |
| MIFARE: MFIS50/S70, 13.56MHz | N/A |
| HID: HID 1325, 26-bit, 125kHz | N/A |
| COMMUNICATIONS | |
| Method | TCP/IP, USB disk (Optional RS232, RS485, WiFi & GPRS) |
| Baud rates | 9600, 19200, 38400, 57600, 115200 |
| OPERATING ENVIRONMENT | |
| Temperature (°C) | 0 ~ 45 |
| Humidity (%) | 20 ~ 80 |
| Power input | DC5V 2A |
| TIME ATTENDANCE | |
| Siren | Built-in and external |
| Work codes | Yes |
| MULTIMEDIA | |
| Voice | Yes |
| Display | 3.0” 65k color TFT screen |
| Short messaging | Yes |
