Description
Manage Your Data Easily
Transaction logs from the i-Kadex and k-Kadex are stored in the master terminal, which can then be managed easily with the Ingress powerful complimentary software.
Versatility Assured
The i-Kadex and k-Kadex come with a Wiegand 26-bit output, which means it can connect to most external controllers without hassles.

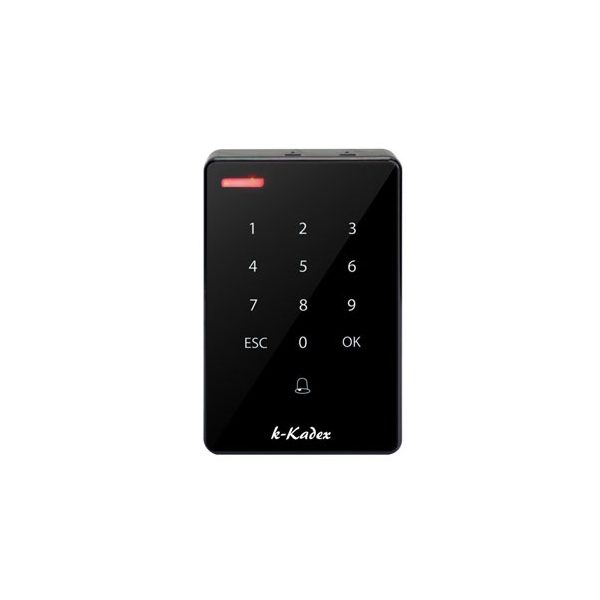

Touch Keypad
The smooth surface of the k-Kadex is equipped with a unique touch keypad providing you with a touch of class.
Third Party Controller
The i-Kadex and k-Kadex can be integrated with a FingerTec master terminal or it can be connected with an Ingressus controller or third party controller to function as a master terminal.
Track Movement of Staff
By installing an exit slave reader instead of a push button, the management will find it easier to track the movement of staff, as verification is needed even when exiting the premises.
Waterproof
The quality of the i-Kadex and k-Kadex is impeccable, being IP65 rated, which means that it is not only dustproof, but water resistant as well.
Flexible Integration
Although being primarily a card reader, the i-Kadex and k-Kadex can also connect to other fingerprint and face recognition master terminals as an exit slave reader.
Value for Money
Mix and match the terminals with either the m-Kadex or Kadex to give you more value for your money.
Specifications |
|
| SURFACE FINISHING | Acrylonitrile Butadiene Styrene (ABS) |
| TYPE OF SCANNER | RFID antenna |
| MICROPROCESSOR | Managed by master |
| MEMORY | |
| ALGORITHM | |
| PRODUCT DIMENSION (L X W X H), mm | 75 x 20 x 115 |
| STORAGE | |
| Card | Storage in master |
| Transaction | |
| ENROLLMENT & VERIFICATION | |
| Methods | Card or Password |
| Card per user ID | Managed by master |
| Reading distance, mm | 40 ~ 80 (RFID, HID), 30 ~ 50 (Mifare) |
| Verification time (sec) | Managed by master |
| CARD TECHNOLOGY | |
| RFID: 64-bit, 125kHz | Yes |
| MIFARE: MFIS50/S70, 13.56MHz | Made to order |
| COMMUNICATIONS | |
| Wiegand | 26-bit output |
| OPERATING ENVIRONMENT | |
| Temperature (°C) | -10 ~ 70 |
| Humidity (%) | 20 ~ 80 |
| Power input | DC 12V 1A |
| TIME ATTENDANCE | |
| Work codes | Yes |
| ACCESS CONTROL | |
| EM lock driving output | Managed by master |
| Alarm output | |
| Anti passback | |
