Specifications

Cable
Connectivity Details Type : Console cable
Cable Details
Included Qty : 1

Capacity
Type : Active VLANs
Value : 4096

Dimensions & Weight
Depth : 10.1 in
Height : 1.7 in
Weight : 9.08 lbs
Width : 17.3 in

Environmental Parameters
Humidity Range Operating : 10 – 90% (non-condensing)
Humidity Range Storage : 10 – 90% (non-condensing)
Max Operating Temperature : 122 °F
Max Storage Temperature : 158 °F
Min Operating Temperature : 32 °F
Min Storage Temperature : -4 °F

Flash Memory
Installed Size : 256 MB

Header
Brand : Cisco
Country Kits : North America
Manufacturer : Cisco Systems

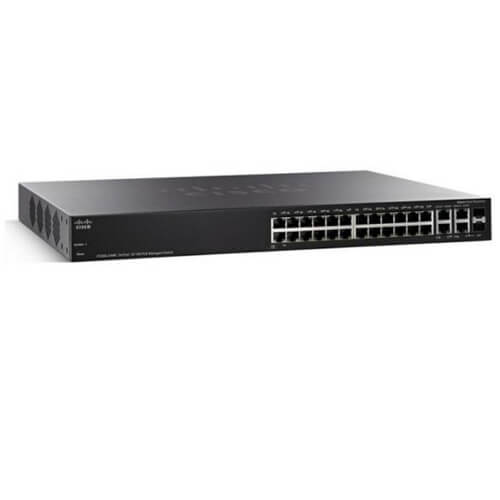

Model : SF350-24MP
Product Series SF350
Packaged Quantity : 1
Product Line : Cisco Small Business
Interface Provided
Comments : Management
Qty : 1
Type : Console
Comments : PoE+
Connector Type : RJ-45
PoE Power : 375 W
Qty : 24
Type : 100Base-TX
Connector Type : RJ-45/SFP
Qty : 2
Type : 1000Base-T
Connector Type : SFP
Type : USB

Miscellaneous
Authentication Method : RADIUS, Secure Shell (SSH), TACACS+
Color Category : Black
Encryption Algorithm : SSL
Height (Rack Units) : 1
MTBF : 272,127 hours
Rack Mounting Kit : Included

Networking
Advanced Switching : Layer 3
Compliant Standards : IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features : 12MB packet buffer, 2 fans, Access Control List (ACL) support, Broadcast Storm Control, DHCP support, DiffServ support, DoS attack prevention, Firmware upgradable, IGMP snooping, IPv6 support, Jumbo Frames support, Layer 2 switching, Layer 3 switching, MLD snooping, Multicast Storm Control, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Unicast Storm Control, VLAN support, Weighted Round Robin (WRR) queuing
Form Factor : Rack-mountable
Jumbo Frame Support : 9216 bytes
MAC Address Table Size : 16K entries
Manageable : Yes
PoE Budget : 375 W
Ports Qty : 24
Power Over Ethernet (PoE) : PoE+
Remote Management Protocol : CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol : CIDR, Static IPv4 routing
Status Indicators : Link/activity
Subcategory : Network hubs and switches
Subtype : Fast Ethernet
Type : Switch

Performance
Type : Forwarding performance (64-byte packet size)
Value : 9.52 Mpps
Type : Switching capacity
Value : 12.8 Gbps

Ports
Qty : 24
Type : 10/100 (PoE+)
Ports (2nd)
Qty : 2
Type : Combo Gigabit Ethernet/Gigabit SFP
Ports (3rd)
Qty : 2
Type : Gigabit SFP

Power Device
Frequency Required : 50/60 Hz
Nominal Voltage : AC 120/230 V
Type : Internal power supply

RAM
Installed Size : 512 MB
