Features

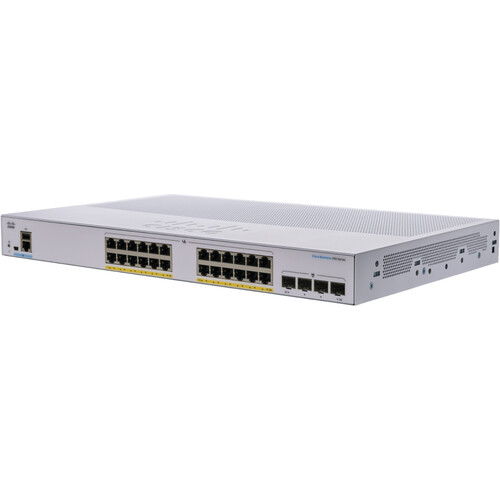

• 24-port 10/100/1000 Mbps Gigabit Ethernet switch + 4 SFP
• 24 PoE/PoE+ ports with 195 Watts budget
• SupportedSFP modules: MGBSX1, MGBLH1, MGBLX1, MGBT1, GLC-SX-MMD, GLC-LH-SMD, GLC-BX-U, GLC-BX-D, GLC-TE
• Layer 2 manageable switches and Layer 3 static routing (simplified web interface) or centralized management (Cisco Business Dashboard)
• Total switching capacity: 56 Gbps
• IPv6 compatible
• QoS management, basic security, VLAN, IPv6
• Automatic deployment of voice systems across the network (Auto Smartports)
• Static IP routing (32 IPv4 Routes, 255 VLANs, 8K Macs)
• EEE (Energy Efficient Ethernet) – Green switch with energy saving features

Specifications

Switch Type : Layer 2 / Layer 3 static routing Smart Switch
Ports: 24 10/100/1000 PoE+ ports, 4 Gigabit SFP
Ports support PoE: 24-port PoE+
Power Dedicated to PoE : 195W
LEDs: System, Link/Act, PoE, Speed
Console port : Cisco Standard mini USB Type-B / RJ45 console port
USB slot : USB Type-A slot for file and image management
Cabling type : UTP Category 5e or better for 1000BASE-T
CPU : 800 MHz ARM
Memory : DRAM 512 MB / Flash 256 MB
Throughput : 41.66 mpps (64-byte packets)
Switching capacity : 56.0 Gbps
MAC address table : 8K
