Description

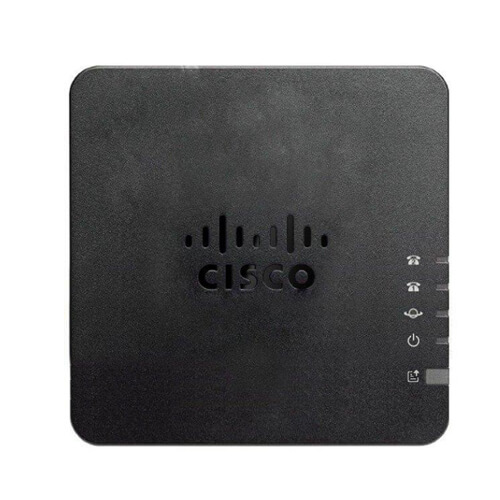

Cisco ATA191 Multiplaform ATA (3PW) Features
- Provides 2 standard FXS ports which can be configured independently as two SIP registrations
- Turns traditional telephone, fax, and overhead paging communications devices into IP devices for greater cost-effectiveness
- Offers clear, natural-sounding voice quality via advanced preprocessing, high-performance echo cancellation, voice activity detection, and comfort noise generation
- Enables zero-touch provisioning via TR-069 and XML configuration files
- Provides a complete security solution for both media and signaling
- Improves serviceability with a dedicated PRT button for problem reporting and log collection
- Enables IPv6 dual stack to help with migration to IPv6
Compatibility
- Designed to work with third-party call control systems (3PCC, SIP)
- Does not work with Cisco call control systems
Specifications:
Protocols
VoIP protocols: SIP
Supported network protocols: TCP, UDP, RTP, HTTP, ARP, RTCP, ICMP, LLDP
Management protocols: SNMPv3
Networking
DHCP client: Yes
Management features
Web-based management: Yes
Quality of Service (QoS) support: Yes
Security
Security algorithms: AES,HTTPS,SSH
DMZ support: Yes
Phone features
Noise reduction: Yes
Call management
Conference call: Yes
Caller ID: Yes
Call waiting: Yes

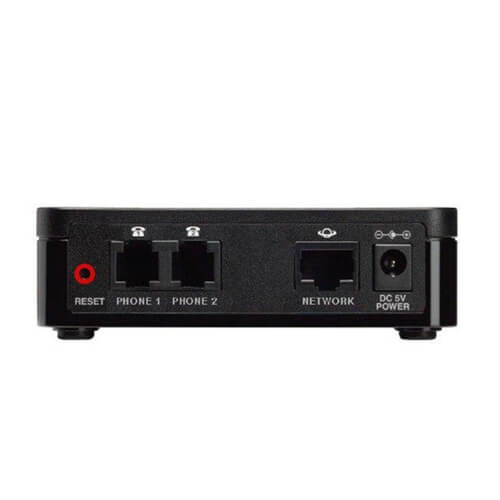

Ports & interfaces
Modem (RJ-11) ports: 2
Ethernet LAN (RJ-45) ports: 1
Technical details
Voice codecs: G.711Mu,G.711a,G.726,G.729A,G.729ab
Reset button: Yes
Fax compatibility: T.38
Weight & dimensions
Weight: 132.1 g
Dimensions (WxDxH): 100 x 100 x 28 mm
Operational conditions
Storage temperature (T-T): -10 – 60 °C
Storage relative humidity (H-H): 10 – 95%
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 90%
Certificates
Safety : UL 60950 Second Edition, CAN/CSA-C22.2 No. 60950 Second Edition, IEC 60950-1:2005 (Second Edition) + A1:2009 + A2:2013 and/or AS/NZS 60950.1:2015
Certification : CE Markings per directives 2014/30/EU and 2014/35/EU
Indication
Power LED: Yes
LED indicators: Yes
