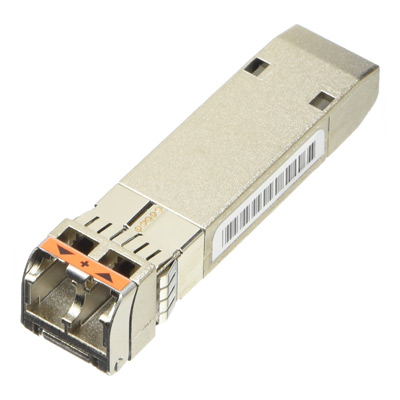

Cisco 10 Gigabit Modules SFP-10G-LRM

On standard Fiber Distributed Data Interface (FDDI) grade Multimode Fiber, the Cisco 10GBASE-LRM Module supports link lengths of 220m (MMF). The transmitter should be coupled through a mode conditioning patch cord to ensure that specifications are met over FDDI-grade, OM1 and OM2 fibres. For applications above OM3 or OM4, no mode conditioning patch cord is required.

On standard Single-Mode Fiber, the Cisco 10GBASE-LRM Module also supports link lengths of 300m (SMF, G.652).

Description

Features and benefits

Cisco SFP+ modules offer the following features and benefits.
Industry’s smallest 10G form factor for greatest density per chassis
Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch (no need to power down if installing or replacing)
Supports “pay-as-you-populate” model for investment protection and ease of technology migration
Digital optical monitoring capability for strong diagnostic capabilities
Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
Cisco quality Identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco

Technical Details

Model Number: SFP-10G-LRM
Description: Cisco 10GBASE-LRM SFP+ transceiver module for MMF and SMF, 1310-nm wavelength, 220m, LC duplex connector
Device Type: Plug-in module
Form Factor: SFP+
Date Rate: 10.3Gbps
Wavelength: 1310nm
Power Budget: 3.4dB
Max Reach Distance: 220m
Transmit Power: -6.5~0.5dBm
Receive Sensitivity: -12dBm
Voltage: 3.3V
Power Consumption: 1W
Connector: Dual LC
Fiber Type: MMF
Operation Temperature: 0~70 °C
DDMI: With
Application: 10 Gigabit Ethernet
Certifications: CE, FCC, TUV, UL, RoHS, ISO9000:2001
