Description
RADIO TECHNOLOGY
RF BANDS
Wide-band operation 4.400 to 5.925 GHz in single SKU Supported bands include the following: – NATO Band IV / NTIA Compliant (4.40 GHz to 4.99 GHz) – 4.9 GHz Public – 5.1/5.2/5.4/5.8 GHz FCC, 5GHz ETSI
CHANNEL SIZES
5, 10, 15, 20, 30, 40, and 45 MHz channels
SPECTRAL EFFICIENCY
10 bps/Hz maximum
CHANNEL SELECTION
By Dynamic Spectrum Optimization™ (DSO) or manual intervention; automatic selection on start-up and continual self-optimization to avoid interference
MAXIMUM TRANSMIT POWER
27 dBm at BPSK; 23 dBm at 256 QAM
SYSTEM GAIN
Integrated: Up to 161 dB with 20 MHz channel and integrated 21 dBi antenna; varies with modulation mode, channel size and spectrum Connectorized: Varies with modulation mode and antenna type Use Cambium Networks LINKPlanner to determine expected capacity and availability for a given deployment.
RECEIVER SENSITIVITY
-97 dBm with 5 MHz channel
MODULATION / ERROR CORRECTION
Fast Preemptive Adaptive Modulation featuring 13 modulation / FEC coding levels ranging from BPSK to 256 QAM dual payload MIMO
ANTENNA
Connectorized+Integrated: 21 dBi flat panel or external antenna via 2 x N-type connectors Connectorized: Can operate with a variety of single- and dual-polarity antennas through 2 x N-type female connectors
RANGE
Up to 124 miles (200 km)
SECURITY
128/256-bit AES Encryption (optional) HTTPS and SNMPv32 Identity-based user accounts Configurable password rules User authentication and RADIUS support Event logging and management; optional logging via syslog Disaster recovery and vulnerability management FIPS-197 compliant FIPS 140-2 Level 2 (compliant at launch); NIST Validation late-2015
ETHERNET BRIDGING
PROTOCOL
IEEE 802.3
USER DATA THROUGHPUT
Dynamically variable up to 450 Mbps Maximum conditions : 2×2, 45 MHz channel1 , 256 QAM
LATENCY
1 – 3 ms one-direction latency
QoS
8 Queues
PACKET CLASSIFICATION
Layer 2 and Layer 3 IEEE 802.1p, MPLS, Ethernet priority
PACKET PERFORMANCE
Line rate ( >850K packets per second)
TIMING TRANSPORT
Synchronous Ethernet; IEEE 1588v2 (optional)
MANAGEMENT & INSTALLATION
LED INDICATORS
Power status, Ethernet link status, and activity on Extended Range PoE supply
NETWORK MANAGEMENT
In-band and out-of-band management (OOBM)
SYSTEM MANAGEMENT
IPv6/IPv4 dual-stack management support Web access via browser using HTTP or HTTPS/TLS2 SNMP v1, v2c and v3, MIB-II and proprietary PTP MIB Cambium Wireless Manager, WM 4.0/SP4 or higher (optional) In-band On-line spectrum analyzer (no impact on payload traffic or network operation)
INSTALLATION
Built-in audio and graphical assistance for link optimization
CONNECTION
Distance between outdoor unit and primary network connection: up to 330 feet (100 meters) using Power-over-Gigabit Ethernet; longer distances up to 984 feet (300 meters) can be achieved using fiber interface
PHYSICAL
DIMENSIONS

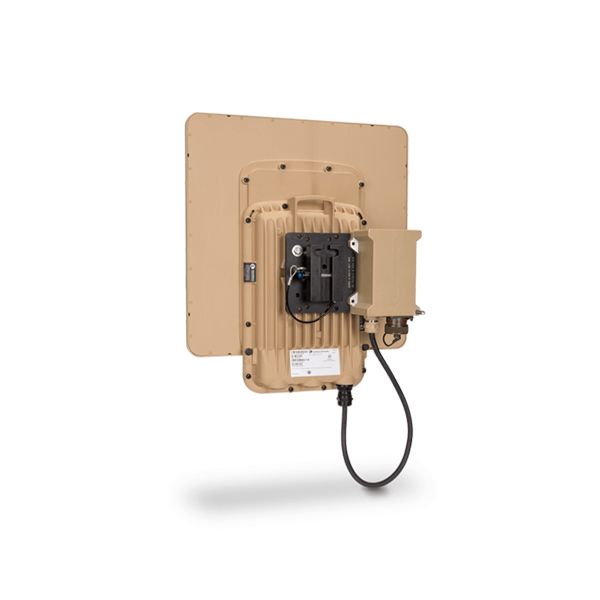

Connectorized+Integrated Outdoor Unit (ODU): Width 371 mm (14.6”), Height 429 mm (16.9”), 96 mm (3.8”) Connectorized ODU: Width 204 mm (8.0”), Height 318 mm (12.5”), Depth 90 mm (3.5”)
WEIGHT
Connectorized+Integrated ODU: 5.3 kg (11.7 lbs.) including bracket Connectorized ODU: 3.1 kg (6.8 lbs.) including bracket
OPERATING TEMPERATURE
-40° to +140° F (-40° to +60° C), including solar radiation
SHOCK, VIBRATION, TEMPERATURE, HUMIDITY
MIL-STD-810G
DUST-WATER INTRUSION PROTECTION
IP66 and IP67
ENVIRONMENTAL & REGULATORY
REGULATORY PROTECTION AND SAFETY
UL60950-1 and -22; IEC60950-1 and -22; EN60950-1 and -22; CSA-C22.2 No. 60950-1; CSA-C22 No. 60950-22-7; CB approval for Global
RADIO
4.9 GHz: FCC Part 90Y, RSS-111 5.x GHz: FCC Part 15, sub-parts 15C and 15E; RSS 247 Issue 1; EN 302 502; EN 301 893; EN 302 625; Eire ComReg 02/71R1, UK Approval to IR2007
EMC
Europe – EN 301 489-1 and -17; FCC Part 15B Class B
