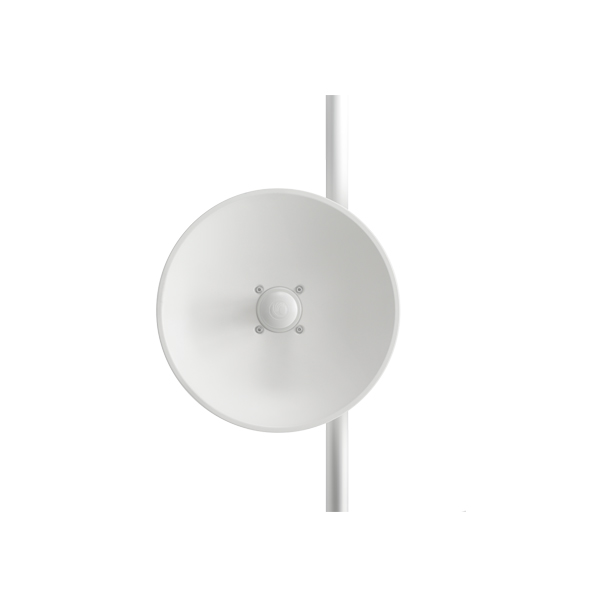

Cambium PTP 450b High Gain Backhaul in Dubai UAE

SKU: Cambium PTP 450b High Gain Backhaul

Categories: Cambium Networks

Up to 300 Mbps in a 40 MHz channel. Frequency range is 4.9 – 5.925 GHz

Support from Our Knowledge Hub

Ask us anything!

Tel: +971 4352 24 33

Description
Additional information

Description

SPECTRUM

Channel Spacing

Configurable on 2.5 MHz increments

Frequency Range

4900 – 5925 MHz

Channel Width

5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz

INTERFACE

MAC (Media Access Control) Layer

Cambium Networks proprietary

Physical Layer

2×2 MIMO OFDM

Ethernet Interface

100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant

Protocols Used

IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP

Network Management

IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro

MTU

1700 bytes

VLAN

802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

SECURITY

Encryption

FIPS-197 128-bit AES, 256-bit AES (optional)

Additional information

Brand	Cambium Networks
