PHYSICAL SPECIFICATION

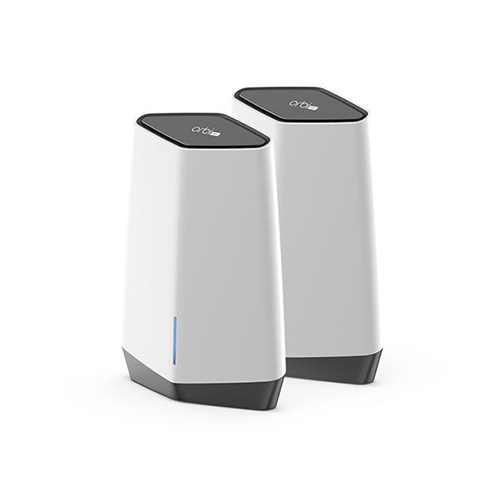

Orbi Pro WiFi 6 Router (SXR80) : Dimensions6.8 x 3.3 x 9.7 in, Weight 2.06lb
Orbi Pro WiFi 6 Satellite (SXR80) : Dimensions6.8 x 3.3 x 9.7 in, Weight 2.06lb each

TECHNICAL SPECS

What do I need for Orbi Pro WiFi 6 to work? : 1. High-speed Internet connection 2. Connect to existing modem or gateway 3. Use the local UI to set up and customize in minutes
WiFI Technology : (2,400 + 2,400 + 1,200) Mbps†, Simultaneous Tri-band WiFi
Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz – 256QAM support
Radio 2 : IEEE 802.11a/n/ac/ax 5GHz – 1024QAM support
Radio 3 : IEEE 802.11a/n/ac/ax 5GHz – 1024QAM support
Antennas : Eight (8) high-performance antennas with high-power amplifiers
MU-MIMO : OFDMA and bi-directional MU-MIMO WiFi 6 throughput. MU-MIMO capable for simultaneous data streaming on multiple devices
TWT : TWT (Target Wait Time) for longer smartphone battery life
Beamforming : Implicit/Explicit Beamforming for 2.4GHz and 5GHz bands
Link Aggregation Grouping : Local Area Network Ports for Router Unit 4x GbE, of which two can be formed in a LAG. Local Area Network Ports for Satellite Unit 1x 2.5GbE; 4x GbE, of which two can be formed in a LAG
Ports – Orbi Pro WiFI 6 Router : One (1) Gigabit or 2.5 Gigabit Ethernet WAN or LAN port. Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional. Two (2) Gigabit Ethernet LAN ports
Security : Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices). Flexible VLAN configuration on all four (4) SSID WiFi networks. Client isolation by default on Guest SSID and configurable on other SSIDs. WPA/WPA2/WPA3 support.
Local Admin : Local Admin UI available for extensive feature setting and maintenance
Insight : Insight App – Secured Cloud for remote monitoring
Third party support : Domotz
