Overview

The series is part of Hewlett Packard Enterprise’s OfficeConnect portfolio of small business networking products. These switches offer excellent value and include features that will satisfy even the most sophisticated small business networks. Basic Layer 2 features such as VLANs and link aggregation are customizable, as are advanced features such as Layer 3 static routing, IPv4 and IPv6 Host mode, ACLs, and Spanning Tree Protocols. A Limited Lifetime Warranty is included with the HPE OfficeConnect 1920S Switch Series.

Features and Benefits:

Simplifies Network Deployment and Management for Small Organizations

The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.

The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.

These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.

Keeps Your Business Protected with Enhanced Security

The HPE OfficeConnect 1920S Switch Series supports Energy Efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.

Enhanced security features such as Access Control List, IEEE 802.1x and VLANs guard your network from unwanted or unauthorized access.

Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection and supports secure http (https).

Delivers Better Performance at a Lower Total Cost of Ownership

The HPE OfficeConnect 1920S Switch Series delivers advanced functionality in smart-managed switches, including Layer 3 static routes, SFP ports, rate limiting, link aggregation and IGMP.

The switch series includes PoE+ options to power IP devices without the cost of additional cabling.

Green features like port shutdown and Energy Efficient Ethernet compliance for greater energy-efficiency.

The switch series is covered by the Limited Lifetime Warranty with 24×7 phone support for 90 days and business hours thereafter.

Specification

PoE Capability: 370W PoE+
Product Dimensions (metric): 44.25 x 24.61 x 4.39 cm
Power Consumption: 435W (maximum), 34.2W (idle)

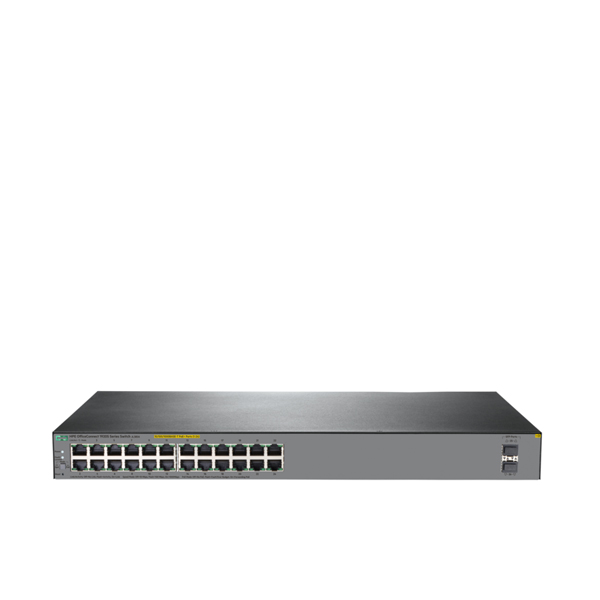

Product Differentiator (long): Advanced smart managed 24-port Gigabit PoE+ high-power budget switch from our most popular switch series for small businesses. This model has 24x 10/100/1000 PoE/PoE+ ports as well as 2 SFP ports. Power over Ethernet budget is 370 Watts.
External I/O Ports: (24) RJ-45 auto-negotiating 10/100/1000 PoE+ ports (12) RJ-45 auto-negotiating 10/100/1000 ports (2) SFP 100/1000 Mbps ports
Routing/switching Capacity: 52 Gbps
Mangement Features: Web browser SNMP IEEE 802.3 Ethernet mib
Throughput: up to 77.3 Mpps
Input Voltage: 435W (maximum), 34.2W (idle)
