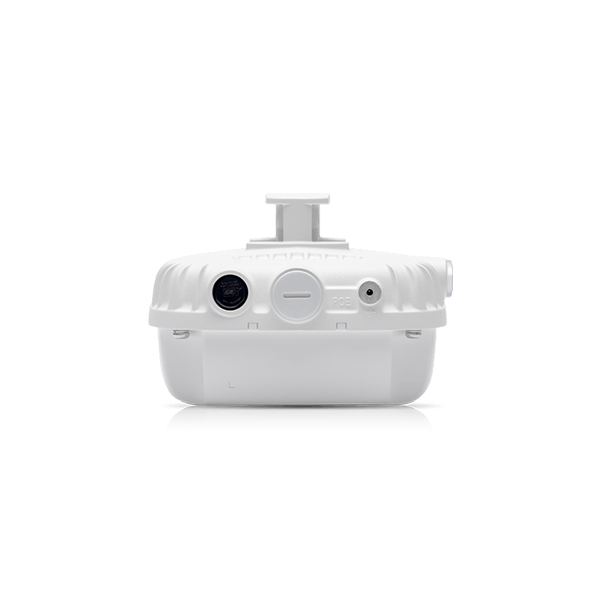

Overview

The 360 Series can endure high and low temperature extremes, wind speeds up to 165 mph, and persistent dampness, precipitation, dust, and salt sprays for lengthy periods of time, making it ideal for warehouses and distribution centres. Surge protection is built into all of the electrical connectors.
Aruba’s unique ClientMatch technology is included in the 360 Series to reduce sticky client issues while improving 802.11ac Wave 2 performance. Even when users roam, these APs collect session performance characteristics to direct mobile devices to the best-available AP. ClientMatch can combine MU-MIMO compatible devices together to boost network capacity and efficiency using MUMIMO awareness. Aruba’s AI-powered Mobility solution includes ClientMatch as well.

AP-360 SERIES SPECIFICATION

• AP-365
– 2.4-GHz (300 Mbps max) and 5-GHz (867 Mbps max) radios, each with 2×2 MIMO and integrated omnidirectional antennas.
• AP-367
– 2.4-GHz (300 Mbps max) and 5-GHz (867 Mbps max) radios, each with 2×2 MIMO and integrateddirectional antennas.

WIRELESS RADIO SPECIFICATIONS

• AP type: outdoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n
• 2×2 MIMO with two spatial streams and up to 1,266 Mbps wireless data rate
• Supported frequency bands (country-specific restrictions apply):
– 2.4000 GHz to 2.4835 GHz
– 5.150 GHz to 5.250 GHz
– 5.250 GHz to 5.350 GHz
– 5.470 GHz to 5.725 GHz
– 5.725 GHz to 5.875 GHz
• Available channels: Dependent upon configured regulatory domain
• Dynamic Frequency Selection (DFS) compliant to radar coexistence requirements
• Supported radio technologies:
– 802.11b: Direct-sequence spread-spectrum (DSSS)
– 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
– 802.11n/ac: 2×2 MU-MIMO with up to two spatial streams
• Supported modulation types:
– 802.11b: BPSK, QPSK, CCK
– 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
– 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• Transmit power: Configurable in increments of 0.5 dBm

ANTENNAS

Supports 802.11ac TxBF which provides an effectively infinite variety of antenna patterns
• AP-365: Integrated Omni antennas (H and V polarized)
– 2.7 dBi @ 2.4 GHz
– 4.3 dBi @ 5.x GHz
• AP-367: Integrated Directional antennas (+/-45 polarized)
– 6.3 dBi @ 2.4 GHz (90° Vertical x 90° Horizontal)
– 6.5 dBi @ 5.x GHz (90° Vertical x 100° Horizontal)
• Weather resistance
– Wind Survivability: Up to 165 mph
– IP66/67
– ASTM B117-07A: Salt spray testing per UL50 NEMA 4x
– EN 300 019 Environmental testing
» Non-weather protected locations
» Full solar exposure

OTHER INTERFACES

• One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
– Auto-sensing link speed and MDI/MDX
– 802.3az Energy Efficient Ethernet (EEE)
– PoE-PD: 802.3af PoE
• Serial console interface (micro USB)
• Reset button
• Visual indicator (LED):
– Power/system status
