Description
SUM1500RMXLI2U Features

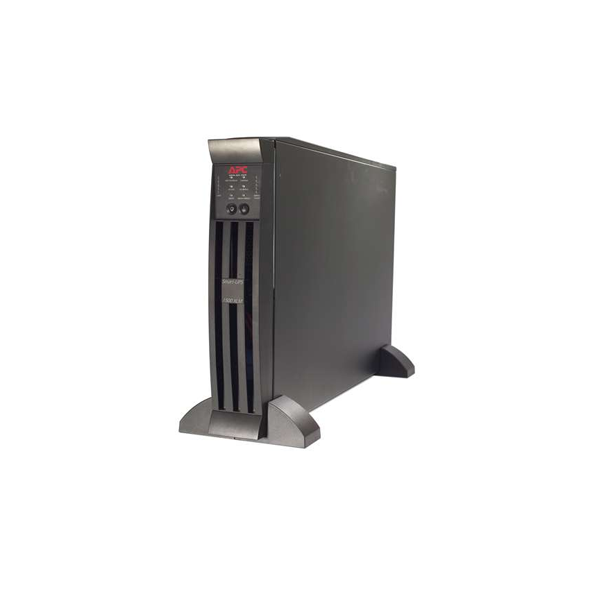

APC Smart-UPS XL Modular 1500VA 230V Rackmount/Tower
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Installation Guide, Rack Mounting Brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual, Web/SNMP Management Card
- Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Global safety approvals
UL60950, CSA60950, IEC60950, EN60950 safety approvals. Meets IEC 61000-4-5 Immunity To Surge, and GR-1089-CORE, Section 4, Lightning and AC Power Faults standards.
- Modular design
Increases adaptability with an open architecture configurable to any IT environment.
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- USB connectivity
Provides management of the UPS via a USB port (not available on all models).
-
Smart-UPS Features & Benefits
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.Disconnected battery notification
Warns when a battery is not available to provide backup power.Marketing Features
Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systemsSave time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.Technical Specifications
Output
Output power capacity
1.425kWatts / 1.5kVAMax Configurable Power (Watts)
1.425kWatts / 1.5kVANominal Output Voltage
230VOutput Voltage Note
Configurable for 220 : 230 or 240 nominal output voltageEfficiency at Full Load
95.0 %Output Voltage Distortion
Less than 5% at full loadOutput Frequency (sync to mains)
47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominalTopology
Line InteractiveWaveform type
Sine waveMaximum Output Current
15
