Description

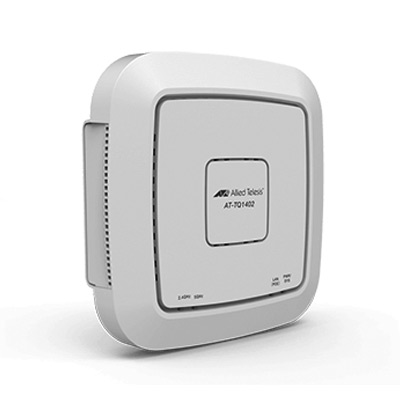

The Allied Telesis TQm1402 is cost-effective Wireless Access Point based on IEEE 802.11ac Wave 2 technology with two spatial streams to deliver a raw capacity of 1.167 Gigabits.
Operational Mode
Centrally managed in multi-channel mode by Vista Manager EX (up to 100 APs)(1)
Standalone
Management
Graphical User Interface (HTTP/HTTPS)
Simple Network Management Protocol (SNMPv1, v2c)
Firmware upgrade
Backup/restore settings
Syslog notification
DHCP client
NTP client
Security
Authentication and accounting
IEEE 802.1X authentication and accounting
IEEE 802.1X RADIUS support
Shared Key Authentication
WPA (Enterprise, Personal)
WPA2 (Enterprise, Personal)
WPA3 (Enterprise(2), Personal)
Captive Portal
Encryption
WEP: 64/128 bit (IEEE 802.11a/b/g only)
WPA/WPA2: CCMP (AES), TKIP
WPA3: CCMP (AES/CNSA)
MAC address filtering (Up to 1024 MAC address)
SSID hiding/ignoring
Client isolation
Neighbor AP detection
Environmental Specifications
Operating temperature range:
PoE: 0°C to 50°C (32°F to 122°F)
AC adapter: 0°C to 45°C (32°F to 113°F)
Storage temperature range:
-25°C to 70°C (-13°F to 158°F)
Operating relative humidity range:
90% non-condensing
Storage relative humidity range:
95% non-condensing
Embedded Antennas(4)
Omni-directional
Frequency band: 2.4 GHz
Max. peak gain: 1.9 dBi
Omni-directional
Frequency band: 5 GHz
Max. peak gain: 3.7 dBi
