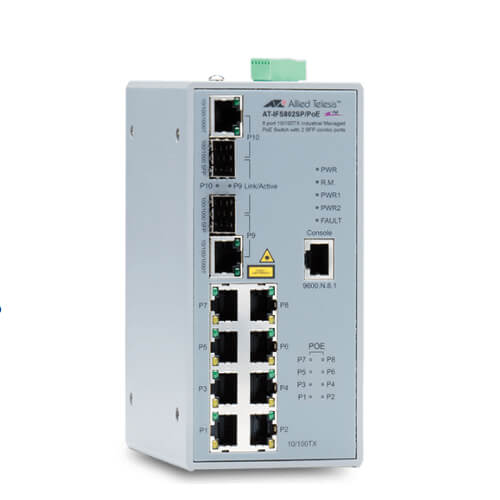

The IFS802SP/POE (W) is a high performance and cost-effective industrial managed switch that meet the high reliability requirements of industrial network operations.

The industrial switch provides a network manager some key features using the simple web-based management function such as; port-based VLANs, IEEE 802.1p Qos, port trunking/link aggregation, port mirroring, priority queues and IEEE 802.1x security support. With support of up to 8k MAC addresses and a 1Mbit packet buffer the IFS802SP/POE (W) switch is an ideal option for integrating management into your network solution.

Gigabit and Fast Ethernet SFP Support

The SFP Ports support both Gigabit and Fast Ethernet Small Form-factor Pluggables (SFPs). This makes the switch an ideal family for environments where Gigabit fiber switches will be phased in over time. This allows for connectivity to the legacy 100FX hardware until it is upgraded to Gigabit. Support for both speeds of SFPs allows organizations to stay within budget as they migrate to faster technologies.

High Network Resiliency

The IFS802SP/POE (W) industrial switch supports the X-Ring protocol that can help the network recover from connection failure within 20ms, thus making the network system very resilient. The X-Ring algorithm is similar to spanning tree protocol (STP) algorithm but its recovery time is faster than STP. In addition, Dual Homing and Couple Ring Topology are also supported to further increase the network availability.
