General

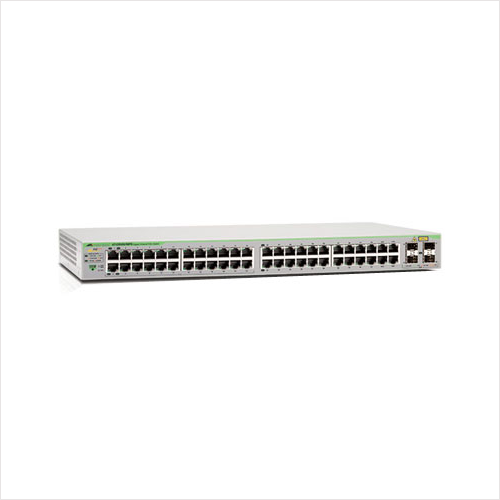

Device Type Switch – 48 ports – Managed
Enclosure Type Desktop 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x shared SFP
MAC Address Table Size 8K entries
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 2c, HTTP
Encryption Algorithm MD5
Authentication Method RADIUS
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
RAM 32 MB
Flash Memory 4 MB Flash
Expansion / Connectivity
Interfaces 48 x 1000Base-T – RJ-45 ¦ 4 x SFP (mini-GBIC)
Power
Power Device Internal power supply
Voltage Required AC 120/230 V ( 50/60 Hz )
Miscellaneous
Rack Mounting Kit Included
MTBF 263,000 hours
Compliant Standards FCC Class A certified, CSA, TUV, C-Tick, cUL, EN 60950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A
Localisation United Kingdom
Dimensions & Weight
Width 44.4 cm
Depth 32.2 cm
Height 4.4 cm
Weight 4.1 kg
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 – 90%
