General

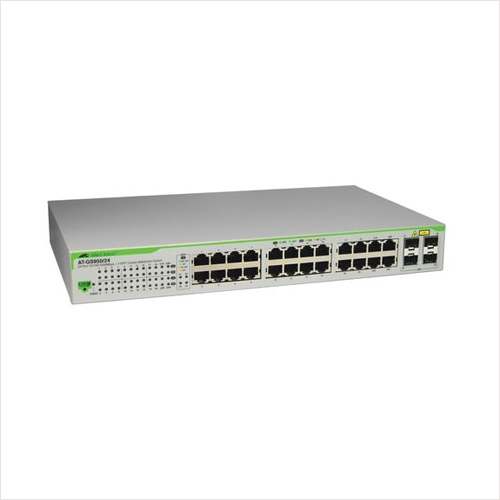

Device Type Switch – 24 ports – Managed
Enclosure Type Desktop 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 2 x SFP
MAC Address Table Size 8K entries
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 2c, HTTP, FTP
Encryption Algorithm MD5
Authentication Method RADIUS
Features Flow control, DHCP support, VLAN support, IGMP snooping, port mirroring, MAC address filtering, Broadcast Storm Control, wall mountable, Quality of Service (QoS)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3j
RAM 16 MB
Flash Memory 4 MB Flash
Expansion / Connectivity
Interfaces 24 x 1000Base-T – RJ-45 ¦ 2 x SFP (mini-GBIC)
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Mounting Kit Included
Rack Mounting Kit Included
Compliant Standards CSA, C-Tick, cUL, EN 60950, VCCI Class A ITE, EN55024, EN55022 Class A, FCC
Localisation United Kingdom
Dimensions & Weight
Width 44.4 cm
Depth 25.7 cm
Height 4.3 cm
Weight 3.2 kg
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 45 °C
Humidity Range Operating 5 – 90%
