Description

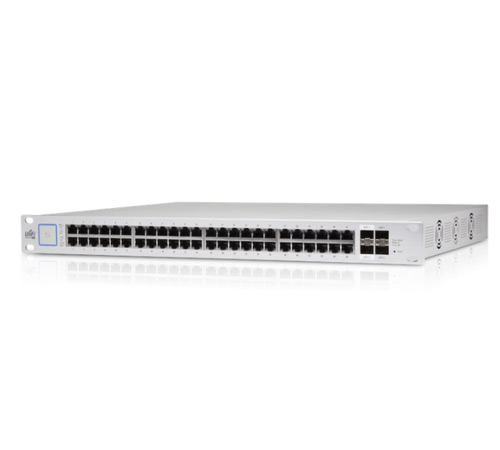

The UniFi Switch 48 PoE+ 500W (USW 48 500W) is a fully managed, PoE+ Gigabit switch that delivers robust performance and intelligent switching for enterprise networks.
The USW 48 500W offers 48 ports of auto-sensing IEEE 802.3af/at and configurable 24V PoE to simplify your network infrastructure.
Additionally, two SFP+ and two SFP ports provide fiber uplinks capable of delivering speeds up to 10 Gbps.
Management Interface : (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughput : 70 Gbps
Switching Capacity : 140 Gbps
Forwarding Rate : 104.16 Mpps
MAC Address Table : 16384
Maximum Aggregations : 6
Monitoring Sessions : 1
Maximum VLANs : 255
Power Method : 100-240VAC/50-60 Hz, Universal Input
Power Supply : AC/DC, Internal, 500W DC
ESD/EMP Protection : Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration : ETSI300-019-1.4 Standard
Operating Temperature : -5 to 40° C (23 to 104° F)
Operating Humidity : 5 to 95% Noncondensing
Certifications : CE, FCC, IC
PoE Interfaces : PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-), 24VDC Passive PoE (Pins 4, 5+; 7, 😎
Max. PoE+ Wattage per Port by PSE : 34.2W
Voltage Range 802.3at Mode : 50–57V
Max. Passive PoE Wattage per Port : 17W,
24V Passive PoE Voltage Range : 20-27V
