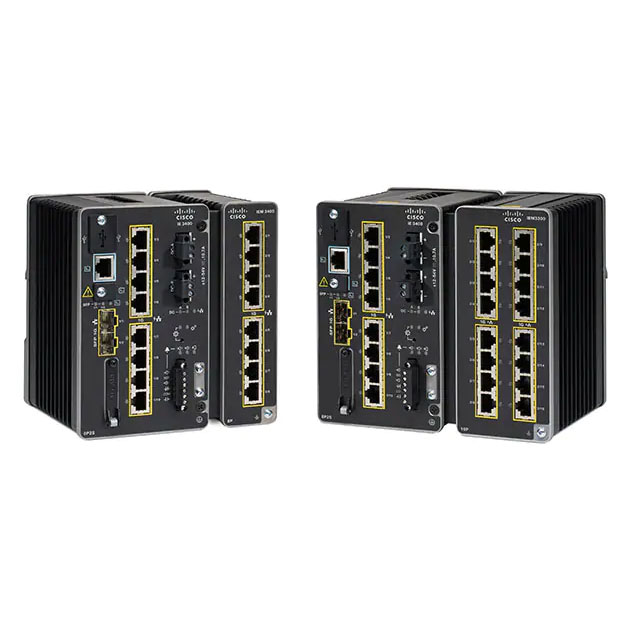

Cisco Catalyst IE3400 Rugged Series

Description

Overview

The Cisco Catalyst IE3400 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch®.

Robust industrial design

Built for harsh environments and temperature ranges (-40°C to +75°C)
Fanless, convection-cooled with no moving parts for extended durability
Hardened for vibration, shock and surge, and electrical noise immunity
Complies with multi-industry specifications for automation, ITS, and substation environments
Improves uptime, performance, and safety of industrial systems and equipment
Covers a wide range of Power over Ethernet (PoE) application requirements
Alarm I/O for monitoring and signaling to external equipment

Full Gigabit Ethernet interfaces

Provides secure access for new high-speed applications in the industrial space
Packs up to 10 ports of GE – 2×1 Gigabit Small Form-Factor Pluggable (SFP) uplinks plus 8×1 Gigabit Copper or PoE+ RJ45 downlinks in a small form-factor base system
Expandable to 26 ports of GE by attaching one of 10 compatible modules (copper, fiber options)
Connects high-speed wireless access points (802.11n, 802.11ac)
Enables High-Definition (HD) IP cameras and Programmable Logic Controllers (PLC)
Supports delay-sensitive applications and time-sensitive networks
Delivers multiple rings and redundant ring topology for new network configurations
Extends geographical scalability where longer-distance connectivity is required

High-density industrial Power over Ethernet (PoE)

Supports up to 24 PoE/PoE+ ports or up to 8 PoE/PoE+ Ports and 4 “802.3bt type 4” Ports with the 2.5G expansion module [System Power budget – 480W]
Controls costs by limiting wiring, distribution panels, and circuit breakers
Reduces equipment needs, thus requiring less space and reducing heat dissipation
Enables ready-to-use PoE devices, such as IP phones, cameras, and wireless access points

User-friendly WEB-based UI (WebUI)

Allows for easy configuration and monitoring
Eliminates the need for more complex terminal emulation programs
Reduces the cost of deployment

SwapDrive zero-configuration replacement

True zero-configuration and simple switch replacement in case of a failure
No networking expertise required
Helps ensure fast recovery

Full Flexible NetFlow (FNF)

Provides enhanced flow and threat visibility
Enables optimization of the network infrastructure, reduces operation costs, and improves capacity planning and security incident detection

Advanced Data plane features

Parallel redundancy protocol (PRP)1
Advanced Security with SGT/SGACL
