Description

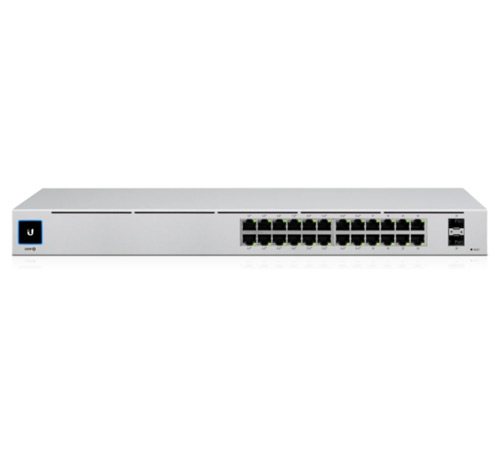

The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports.
It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3″ touch LCM to provide status information.
With a depth of 7.9″, the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port.
The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Interfaces Networking : (24) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports
Management : Ethernet In-Band
Total Non-Blocking Throughput : 26 Gbps
Switching Capacity : 52 Gbps
Forwarding Rate : 38.69 Mpps
Power Method : 100-240VAC/50-60 Hz, Universal Input
Power Supply : AC/DC, Internal, 120W
Supported Voltage Range : 100 to 240VAC
Max. Power Consumption (Excluding PoE Output) : 25W
ESD/EMP Protection : Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration : ETSI300-019-1.4 Standard
Operating Temperature : -5 to 40° C (23 to 104° F)
Operating Humidity: 10 to 90% Noncondensing
Certifications : CE, FCC, IC
