Description

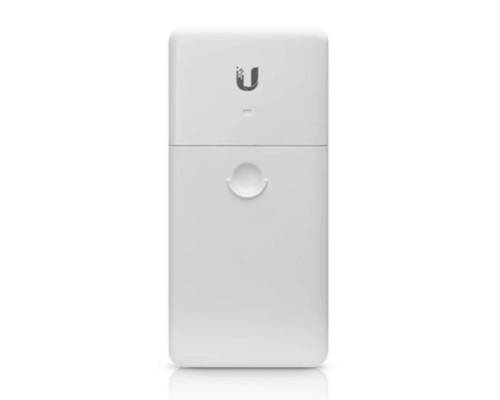

Featuring a durable, weatherproof form factor, the NanoSwitch is ideal for outdoor deployment. For quick installation, the compact NanoSwitch can be easily mounted on a pole or wall.
The NanoSwitch features an outdoor weatherproof form factor.
Operating Temperature: -30 to 70° C (-22 to 158° F)
Simply providing 24V 2-pair input makes NanoSwitch an outdoor 4-port unmanaged switch with “always on” 24V 2-pair output on three ports.
PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch.
PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 30W PoE output.
Power Method : Passive 24V PoE-in
Supported Voltage Range : Passive 24V PoE-in
Networking Interfaces : (4) 10/100/1000 Mbps Ethernet RJ45
PoE Interfaces: Passive 24V PoE-in
Max PoE+ Wattage per Port by PSE : 24V@1A per port / Total 24V@1.5A for three ports
Passive PoE Max wattage per port : 24W per port / Total 36W for three ports
Operating Temperature : -30C ~ 70C
Operating Humidity : 5 to 95% Non-Condensing
Dimensions : 196.4*93.5*32.4mm, 7.73*3.68*1.28inch
Weight : 269g, 9.5oz
Enclosure Characteristics : White Polycarbonate
