Orolia SecureSync Time & Frequency Reference Solutions

Description

Industry-Leading, Modular Resilient Time & Frequency Synchronization Platforms

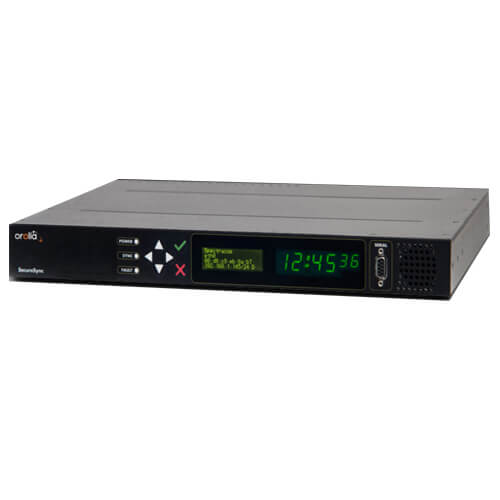

Orolia’s SecureSync® time and frequency reference solutions synchronize critical military and commercial operations where failure is not an option. Combining precision Master clock technology with exceptional configurability, SecureSync delivers the industry’s highest standards for extreme reliability, security, redundancy, and flexibility in a rugged, modular, cost effective form factor.

SecureSync is the first time and frequency reference system listed on the Defense Information Systems Agency (DISA) Department of Defense Information Network (DoDIN) Approved Products List (APL) View approval letter.

Configurable Capabilities in SecureSync

Internal Oscillator

• Derives the precision of frequency signals
• Maintains accuracy if loss of references (holdover)
• Quartz or Rubidium
• Low phase noise options
• Low-G sensitivity option

GPS/GNSS/Alternate Signals

• GPS, Galileo, GLONASS, BeiDou, and more
• Commercial L1
• SAASM GPS option
• STL and eLORAN option

External Time & Frequency References

• Multiple prioritized
• Network sync (NTP, PTP)
• 1PPS, 10 MHz and other frequencies from external clocks
• HAVE QUICK and other timecodes

Networking –Synchronization

• High bandwidth NTP
• PTP options
• Assisted GPS
• Sync monitoring

Management

• HTTP/HTTPS
• REST API
• SSH/SCP/SFTP
• SNMP v1/v2c/v3
• SYSLOG
• IPv4/IPv6
• LDAP/RADIUS/TACACS+
• SMTP

Signal Type

Available for signal generation and external references

• Frequency
• 1PPS
• IRIG
• STANAG/HAVE QUICK
• Timecode (other)

• T1/E1
• Programmable clocks
• Alarms
• Event capture
• Fiber optic interfaces
• Network interfaces
• Custom signals
