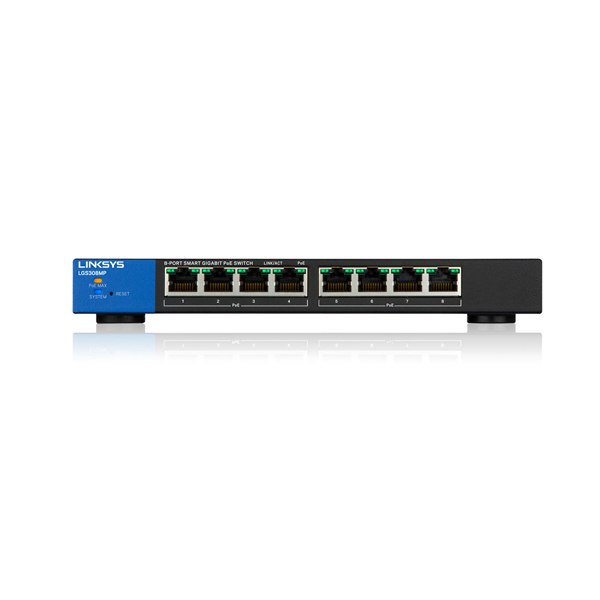

Linksys Business LGS308MP PoE+ Smart 8 Port Gigabit Network Switch (130W)

FEATURES

ROBUST POE+ CAPABILITIES FOR BUSINESS-CLASS APPLICATIONS

Built to deliver business-class performance, the Linksys Business LGS308MP PoE+ Smart 8-Port Gigabit Network Switch offers the efficiency, security, and scalability needed to support your growing business. This high-powered network switch dramatically streamlines installation of peripheral devices and eliminates the need for dedicated electrical wiring thanks to Power over Ethernet Plus (PoE+), which allows network cables to transfer power. With 130 total watts dedicated to PoE+, the smart network switch delivers substantially more power than ordinary PoE switches-making it ideal for supporting expansive surveillance cameras, door access control systems, ProAV systems, access points, video VoIP phones, and other demanding applications.

FACILITATES QUICK-AND-EASY NETWORK EXPANSION

Ideal for complex network environments that demand multiple switches, Linksys gigabit switches are designed to scale alongside the needs of your growing workforce. They help ensure smooth and seamless network expansion by leveraging IEEE802.1s Multiple Spanning Tree Protocol, which prevents formation of loops that can be deadly to your network. Multiple high-bandwidth trunks carry data smoothly between the switches, helping alleviate congestion and improve availability. And thanks to Storm Control, the switches also help minimize loss of service by monitoring and suppressing traffic levels.

QUALITY OF SERVICE (QOS) FOR OPTIMAL PERFORMANCE

Equipped with numerous QoS features, the LGS308MP switch intelligently manages traffic to help deliver the best user experience possible. The switch leverages IGMP snooping to limit IP multicast traffic to ports that request it, enabling the rest of the network to operate at peak efficiency. This allows users to engage in video streaming, VoIP calls, high-volume file uploads, and other bandwidth-intensive tasks without worry of slowing down the network.

KEEPS NETWORK PROTECTED WITH ADVANCED SECURITY

The LGS308MP switch safeguards your network’s mission-critical data from unauthorized access using port authentication and MAC-based port security that require clients to authenticate themselves before any data is transferred. DHCP snooping filters out traffic from untrusted sources, and IP-MAC binding functions help promote overall network integrity to protect against attacks.

TECHNICAL SPECS

• Model Name:
  LGS308MP
• Ports:
  • Total System Ports: 8GE
  • Copper FE/GE Ports (RJ45): g1–g8
• Memory:
  128 MB
• LEDs:
  System (blue), Link/Act/PoE (green/green)
• System Power Consumption without PoE+:
  • 110V:10.82W
  • 220V:10.59W
• Forwarding Rate:
  11.90 Mpps
• Switching Capacity:
  16 Gbps
• MAC Address Table Size:
  8K
• Jumbo Frame (FE, GE):
  9K
• Dimensions (LxWxH):
  • 210 x 104 x 25 mm
  • (8.3 x 4.1 x 1.0 in.)
• Weight:
  0.58kg (1.28 lbs)
• Power Dedicated to PoE+:
  130W
• Power Input:
  • 100–240V
  • 50–60 Hz
  • (3.34A max)
• Power Saving:
  EEE+, Short Reach + Energy Detect
• Operating Temperature:
  0 to 50°C (32 to 122°F)
• Storage Temperature:
  -40 to 70°C (-40 to 158°F)
• Operating Humidity:
  10 to 90% RH
• Storage Humidity:
  10 to 90% RH (non-condensing)
• Spanning Tree:
  IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees

• Link Aggregation:
  IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
• VLAN:
  Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
• Number of VLANs Supported:
  128 active VLANs (4,096 range)
• Auto Voice VLAN:
  Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
• IGMP Snooping:
  IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
• HOL Blocking Prevention:
  Head of line (HOL) blocking prevention
• Port Mirroring:
  Traffic on multiple ports (up to 4 ports) can be mirrored to another port for analysis with a network analyzer
• Security Features:
  • 802.1x Radius authentication
  • DHCP snooping
  • IP-MAC binding
  • Port security supports limited dynamic lock and locked MAC address
  • Management access control
• Storm Control:
  Broadcast, flooding, and multicast
• Quality Of Service:
  Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
• RMON:
  Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
• Management Interface:
  • HTTP
  • HTTPS
• Other Management:
  Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
• SNMP:
  • Version 1
  • Version 2c
  • Version 3
• Firmware Upgrade:
  • Web Browser (HTTP/HTTPS)
  • TFTP
• Warranty and Support:
  • Limited Lifetime (most countries)
  • France, Germany and Spain – 5 year warranty
  • Australia and New Zealand – 2 year warranty
