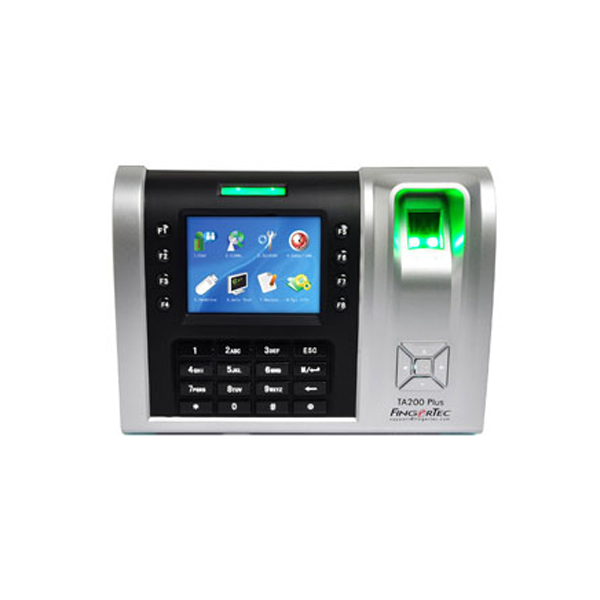

Multiple Verification Methods
From fingerprint to card and password verification, TA200 Plus provides the possibilities. Optimize your security threshold, with fingerprint verification as your primary enrolment form.
TA200 Plus comes with the latest PUSH technology, suitable for FCC data storage and convenient for TimeTec TA. The technology eliminates the need for manual data download process.
Manage Data Easily
TCMS V3 is loaded with useful features complete with various reports for your business. Its data integration to 3rd party software is made available through the readily available SDK.
Full Colour Screen
TA200 Plus comes with a full color TFT screen. It supports display of corporate advertisements, screen- savers and more.
Let your staff experience more independence by reporting their whereabouts via our workcodes feature.
Data Management Simplified
FingerTec TA200 Plus is equipped with TCP/IP connectivity and when that is not available, a USB flash port can be used to transfer transaction logs into your computer.
Short Message Display
Communicate with your employee by personalizing a short message to be displayed at the terminal when they verify. The message can be directed to an individual or to a group of staff.
Program these keys to take you to the commonly used functions in just one step to provide you convenience.
|SURFACE FINISHING||Acrylonitrile butadiene styrene (ABS)|
|TYPE OF SCANNER||Non coated optical scanner|
|MEMORY||256MB flash memory and 32MB SDRAM|
|ALGORITHM||BioBridge VX 9.0 / BioBridge VX 10.0|
|DIMENSION (L X W X H), mm||200 x 56 x 160|
|ENROLLMENT & VERIFICATION|
|Methods||Fingerprint (1:1, 1:N), Card & Password|
|Recommended Fingerprint per user ID||2|
|Fingerprint placement||Any angle|
|Verification time (sec)||< 1|
|FAR (%)||< 0.0001|
|FRR (%)||< 1|
|RFID: 64-bit, 125kHz, RF output power (EN300-330)||Yes|
|MIFARE: MFIS50/S70, 13.56MHz||Make to order|
|HID: HID 1325, 26-bit, 125kHz||Make to order|
|Method||TCP/IP, USB disk|
|(Optional: RS232, RS485, POE, WiFi & GPRS. 3G only applicable to non-POE devices)|
|Baud rates||9600, 19200, 38400, 57600, 115200|
|Temperature (°C)||0 ~ 45|
|Humidity (%)||20 ~ 80|
|Power input||DC 12V 3A, DC 5V 2A (POE)|
|Siren||Built- in (Optional – External)|
|Display||3.0” 65k color TFT screen|
|VOICE / DISPLAY LANGUAGE (TERMINAL)||English (Standard), Arabic, Indonesian, Chinese (Simplified), Cantonese / Chinese (Traditional), Thai, Vietnamese, Spanish, Portuguese (Portugal), French, Russian, German, Turkish & Persian|
|Other languages are available upon request.|
|SOFTWARE LANGUAGE||Arabic, Bulgarian, Chinese (Simplified), Chinese (Traditional), English, German, Hindi, Indonesian, Kurdish, Malay, Portuguese, Russian, Spanish, Thai, Vietnamese|
